Design overview

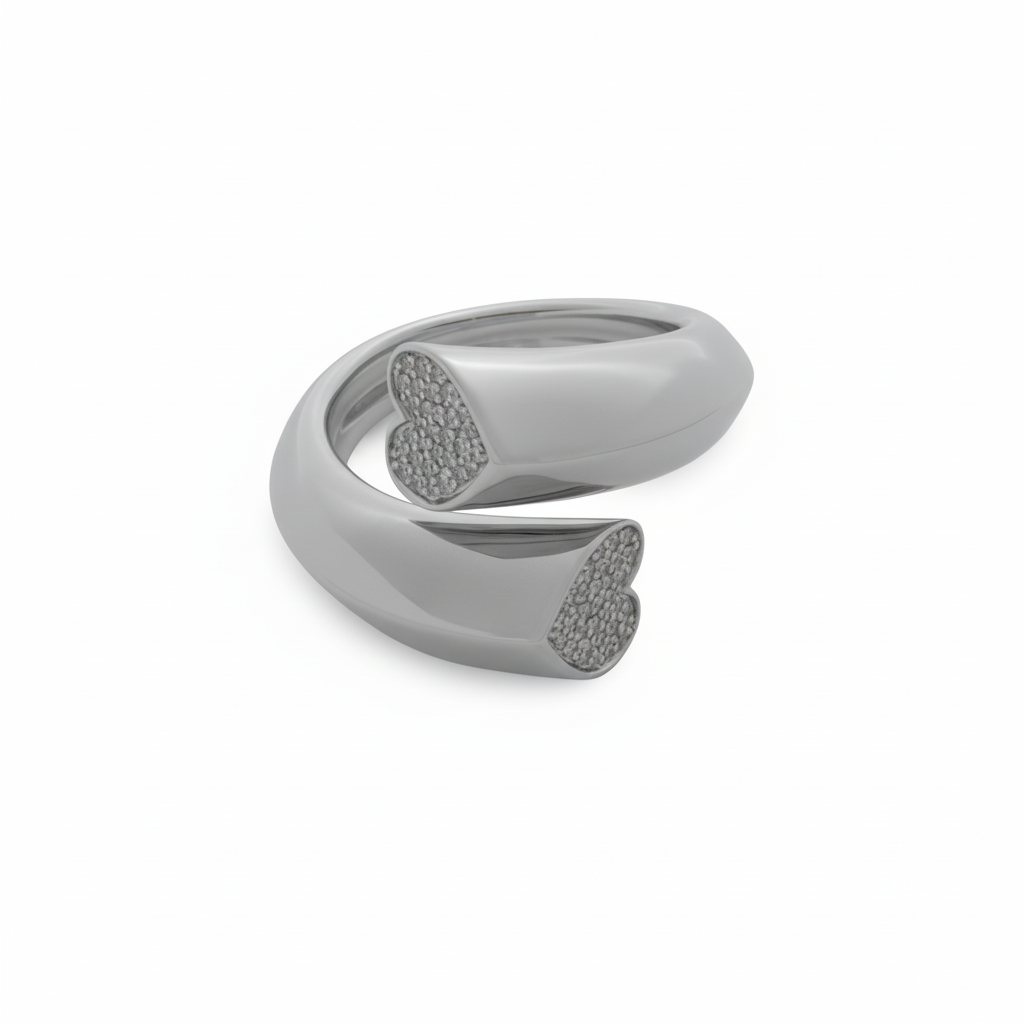

An interlocking heart ring direction where the sculptural motif and pave treatment have to stay readable as one system.

This detailed CAD design page is curated for design professionals and production specialists seeking to manifest a distinctive statement ring. The comprehensive digital representation serves as a foundational blueprint, enabling in-depth discussions on material specification, diamond selection, precise dimensional scaling, proportional integrity, and a refined, tailored interpretation for final manufacturing. It underscores the precision achievable through advanced 3D modeling and engineering principles.

CAD modeling focus

Control the overlap of the heart forms, keep the pave zones disciplined, and preserve the main silhouette from top and profile views.

The strongest version keeps one clear focal plane, a stable shank transition, and enough inner comfort to survive beyond the first render.

Production considerations

The ring needs enough metal between pave areas, reliable stone access, and a castable interlock that does not trap polish or weaken the shape.

Material and setting direction

Use the material direction to support the main silhouette first, then review finishing access and structural thickness before manufacturing decisions are locked.

Stone cues on this page point to diamond as the clearest focal references, so the setting plan should stay subordinate to the main CAD silhouette instead of overcrowding it.

Why this reference matters

Useful when a client wants an emotional motif ring with a more engineered, production-ready interpretation.

DMJ Concept uses this heart ring CAD page to align on design direction before moving the strongest option into custom jewelry development or a manufacturing brief.
