DMJ Concept CAD design
Refined Geometric CAD Design: North-South Emerald Cut Ring with Trapezoidal Diamond Flanking
RingsStatement3D CAD
DMJ Concept CAD design
Refined Geometric CAD Design: North-South Emerald Cut Ring with Trapezoidal Diamond Flanking
RingsStatement3D CAD

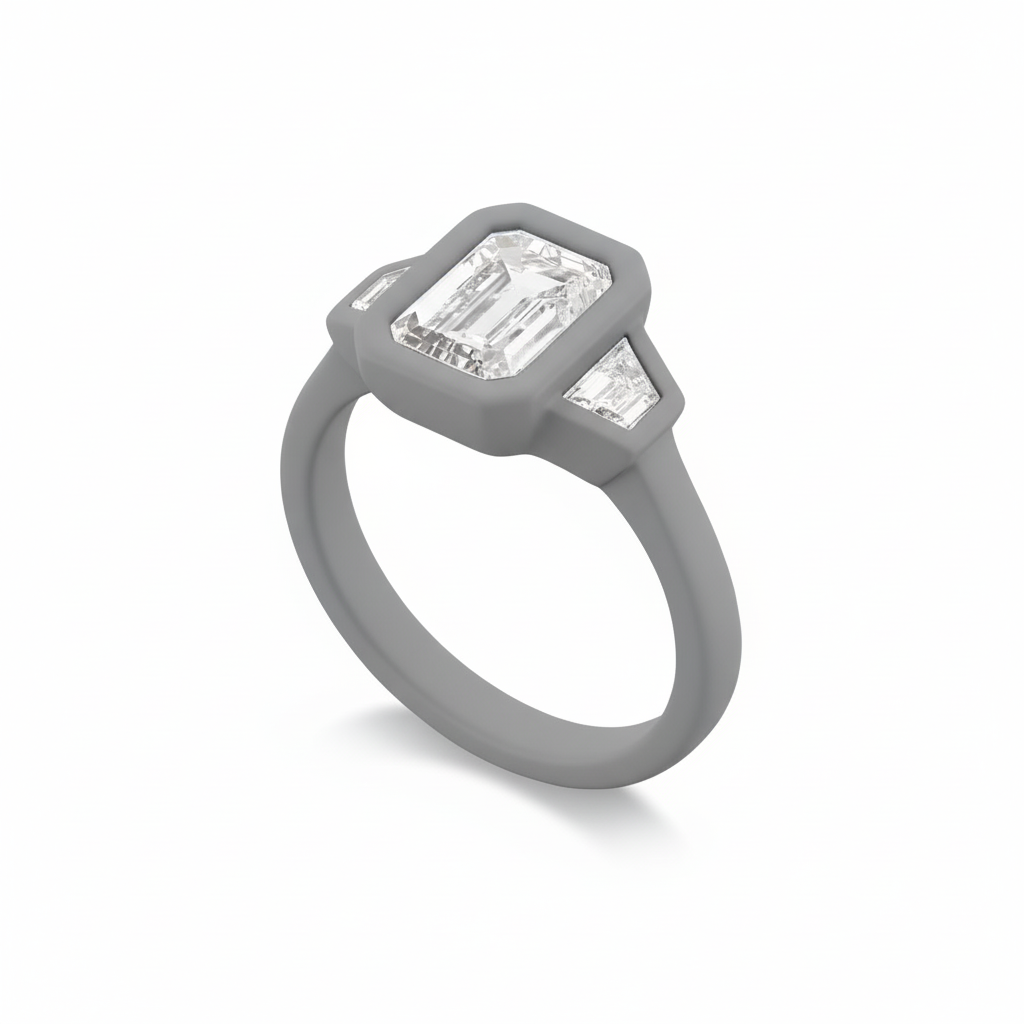

This intricate ring CAD model, featuring a prominent North-South emerald-cut gemstone flanked by precision-set trapezoidal diamonds, serves as an exemplary reference for advanced 3D modeling and precision engineering in bespoke jewelry production.
Within our digital design archive, this 'Pillow' inspired geometric ring, showcasing a distinctive North-South oriented emerald-cut centerpiece framed by precision-set trapezoidal diamonds, is maintained as an invaluable visual benchmark for bespoke jewelry development. This CAD rendition is not presented as a ready-to-order item, but rather as a foundational concept. It illustrates the profound adaptability of high-level jewelry engineering, demonstrating how its core aesthetic and structural elements can be meticulously re-envisioned and fabricated into a unique, custom-engineered piece. Our expert CAD designers and manufacturing specialists leverage such detailed references to translate client visions, whether from initial sketches, conceptual imagery, or precise specifications, into tangible, exceptional fine jewelry.
From CAD model to jewelry production
After the CAD direction is approved, DMJ Concept can continue with prototype review, 3D printing, casting, stone setting, polishing, and final manufacturing support in Bangkok.
Request a custom CAD project
If this CAD direction is close to what you need, send your notes, size targets, stone details, or sketches and we can develop the next production-ready version.
