Design overview

This comprehensive CAD design presentation of a statement ring serves as an invaluable resource for design professionals and manufacturing engineers. It facilitates in-depth technical discussions on material specifications, gemological integration, precise dimensional scaling, proportional fine-tuning, and the bespoke interpretation required for high-precision jewelry production. An exemplary study in advanced jewelry engineering and custom fabrication.

CAD modeling focus

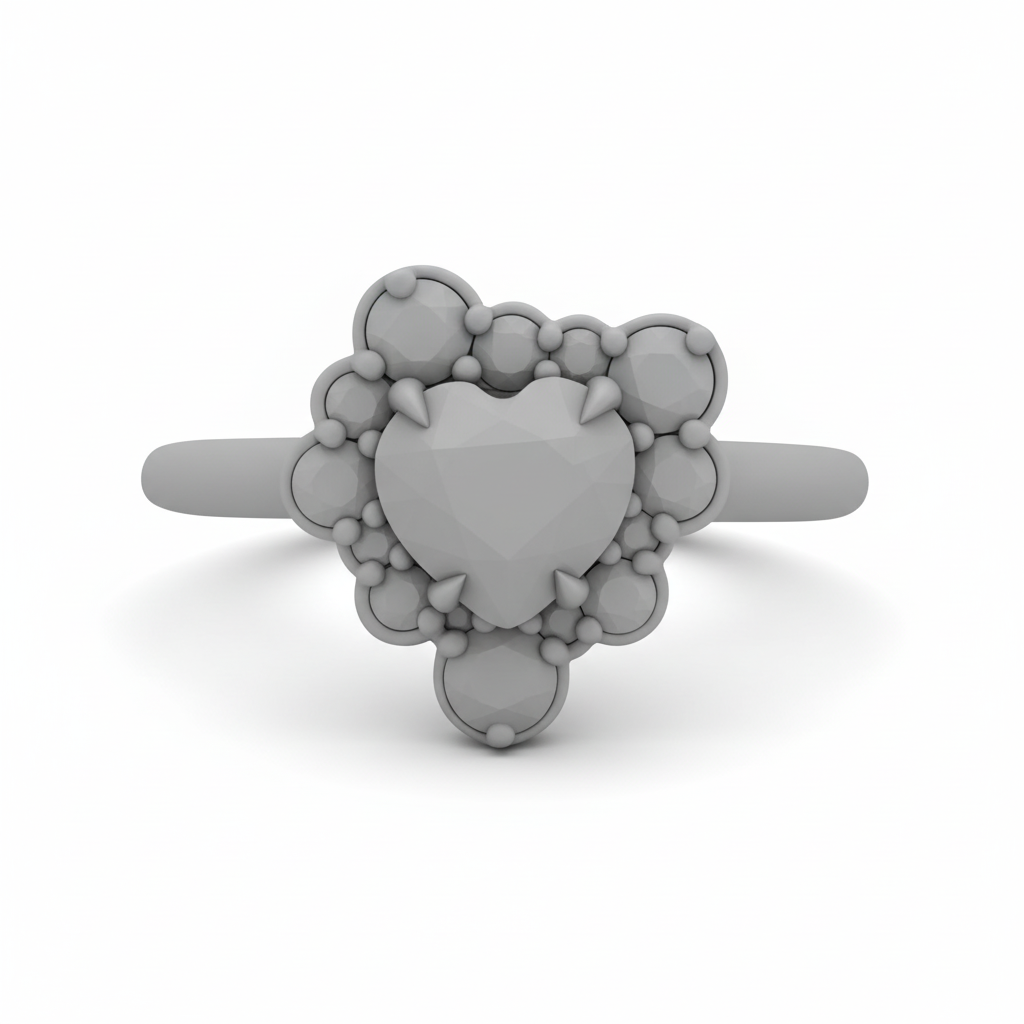

For this ring reference, focus on top-view balance, shoulder transitions, and how the main form reads before scale or stone revisions are finalized.

The strongest version keeps one clear focal plane, a stable shank transition, and enough inner comfort to survive beyond the first render.

Production considerations

This ring needs stable support under the focal area, enough wall thickness through the shank, and finishing access around the most visible edges.

Material and setting direction

Use the material direction to support the main silhouette first, then review finishing access and structural thickness before manufacturing decisions are locked.

Stone cues on this page point to sapphire and spinel as the clearest focal references, so the setting plan should stay subordinate to the main CAD silhouette instead of overcrowding it.

Why this reference matters

Useful for clients comparing statement heart ring directions and needing a cleaner bridge from visual reference into CAD review, custom jewelry planning, and manufacturing discussion.

DMJ Concept uses this heart ring CAD page to align on design direction before moving the strongest option into custom jewelry development or a manufacturing brief.
